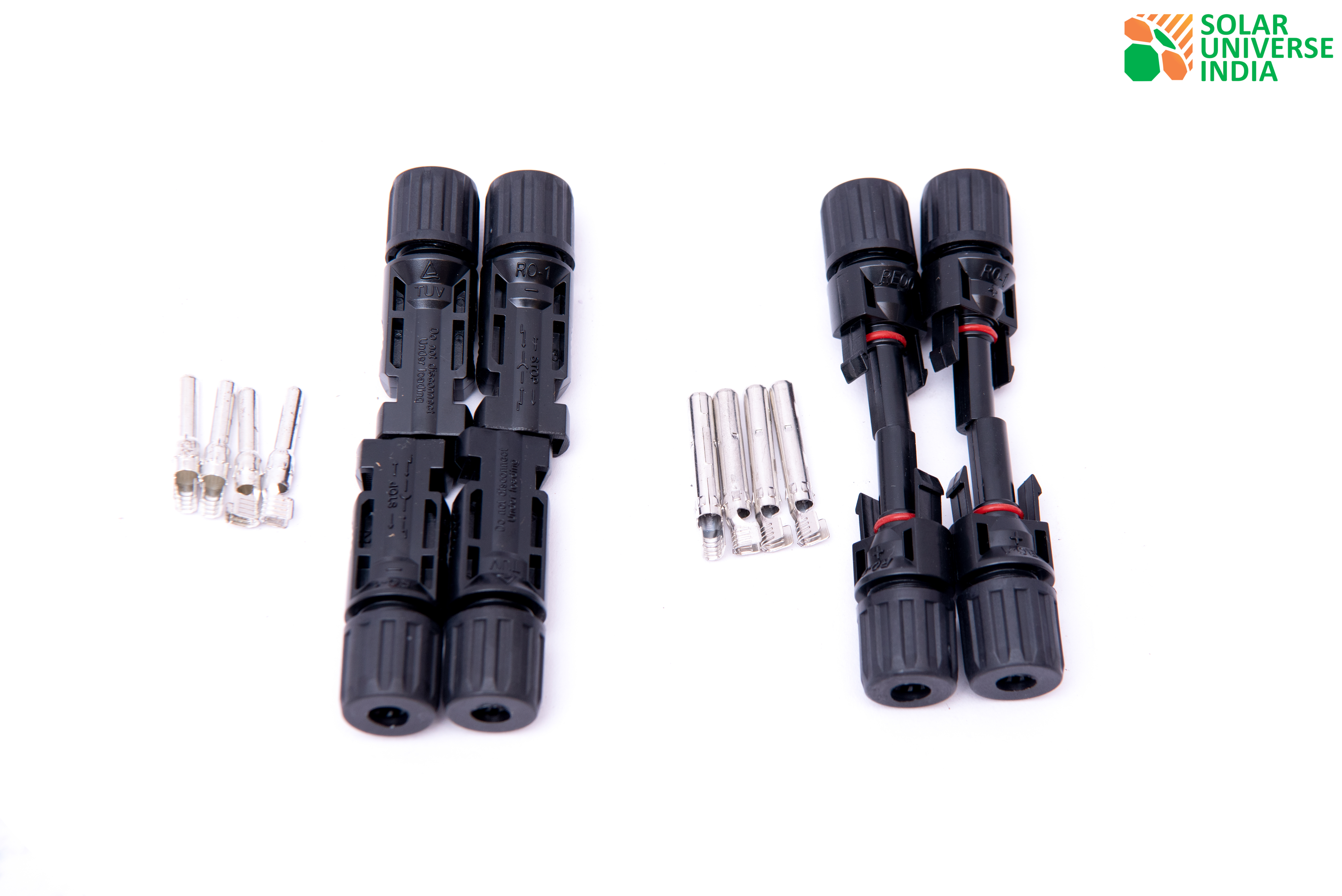

SUI Mc4 Connector for Solar Panels, Male & Female Pair

SUI MC4 connectors are used to connect multiple solar panels or groups of solar panels together in a solar field, and typically used in parallel applications. The metal pin is made from high quality machined copper and sealed tip that can ensure excellent electrical contact.


Technical Specification

 Technical data  Insulation
 Material Pc
 Rated current 30a
 Rated voltage 1500v
 Test voltage 6kv(50hz,1min)
Contact material Copper, tin plated
Contact resistance ≤3m
Egree of protection ip67
Safety class ii
Flame calss ul94
Insertion force  â‰¤50n
Withdrawal force  â‰¥50n
Ambient temperature range -40℃~+85℃
Suitable cable 2.5~6.0mm2awg14/12/10 (2 PCs)
