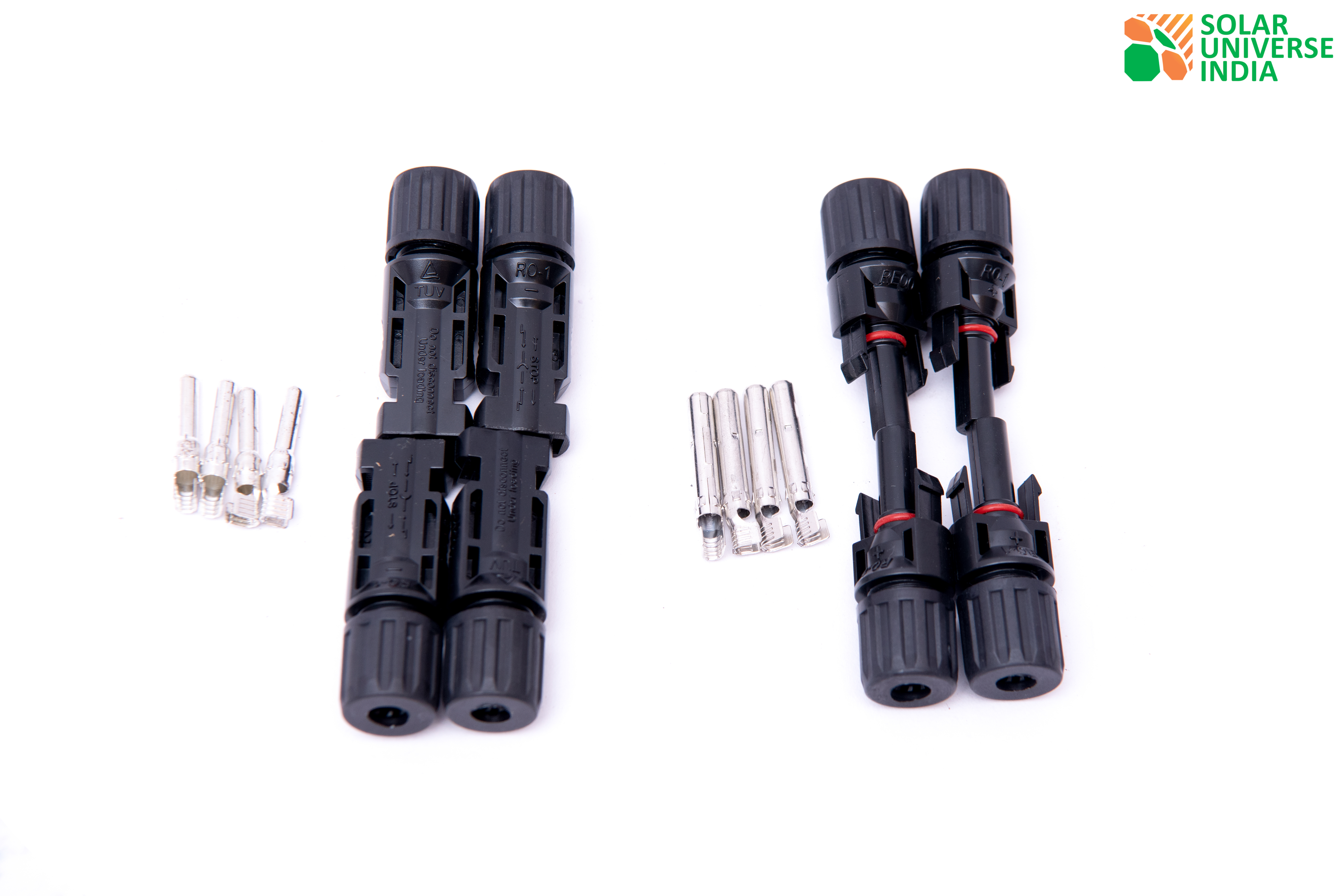

SUI Solar Mc4 Connectors (8 Pairs, Black)-MC4 8 PCS

SUI MC4 connectors are used to connect multiple solar panels or groups of solar panels together in a solar field, and typically used in parallel applications. The metal pin is made from high quality machined copper and sealed tip that can ensure excellent electrical contact.


Technical Specification

Technical Data Insulation
Material Pc
Rated Current 30A
Rated Voltage 1500V
Test Voltage 6Kv(50Hz,1Min)
Contact Material Copper, Tin Plated
Contact Resistance ‰¤3Mî©
Degree Of Protection Ip67
Safety Class Ii
Flame Calss Ul94-V0
Insertion Force  Â‰¤50N
Withdrawal Force  Â‰¥50N
Ambient Temperature Range -40„Ƒ~+85„Ƒ
Suitable Cable 2.5~6.0Mm2Awg14/12/10 (Pack Of 8 Pcs)
