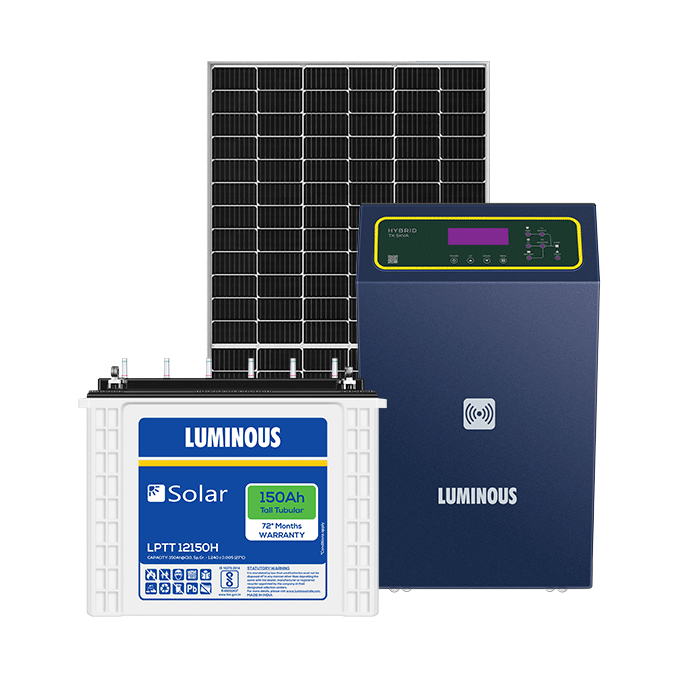

Luminous Product Images Hybrid Inverter TX 5 KVA, Solar Battery 150 Ah (4 Nos.), Solar Panel 550 W (4 Nos.)

Hybrid inverter range from Luminous is a combination of an on-grid and off-grid solar system which makes this inverter more versatile than other solar inverters helping in lowering your electricity bills and protecting from power outages. It can easily work without grid, store electricity in batteries as well as export excess electricity generated to the grid.

MPPT Charge Controller(MPPTs)  to extract up to 30% more power from the panels, minimizing impact of shading and increasing efficiency.
Priority Setting- Allows users flexibility to set priority settings based on their requirement of maximum energy saving, power backup only during power cut and power backup through battery in areas where grid supply is not available.


Solar Battery 150AH- LPTT12150H
Luminous Solar Batteries are C10 rated deep cycle batteries specially designed for longer back up.
Very Low Maintenance
Topping up frequency : Once in 8 to 10 months
Long Design Life

Long cycles (1500@80% DOD, 5000 @20%


Technical Specification

550W/24V Mono Perc Halfcut Solar Panel



Mono PERC half cut cells type Panel.
Capacity - 550W, 24V
Voltage: Voltage at Max Power (Vmax) – 41.92V, Open Circuit Voltage (Voc) – 49.40V
Current: Current at Max Power (imax) – 12.89A, Short Circuit Current (isc) – 13.72A
25 years performance warranty.
BIS certified as per IS/IEC standards which is mandatory for all solar panels.
Best in Class conversion efficiency
Half Cut Solar Cell Technology
Better Shading Tolerance
Excellent Hot Spot Performance
Less Micro Crack Impacts
Lower Resistive Losses
Excellent Low light performance in low visibility in clouds, evening, and morning.
