Urja Sathi

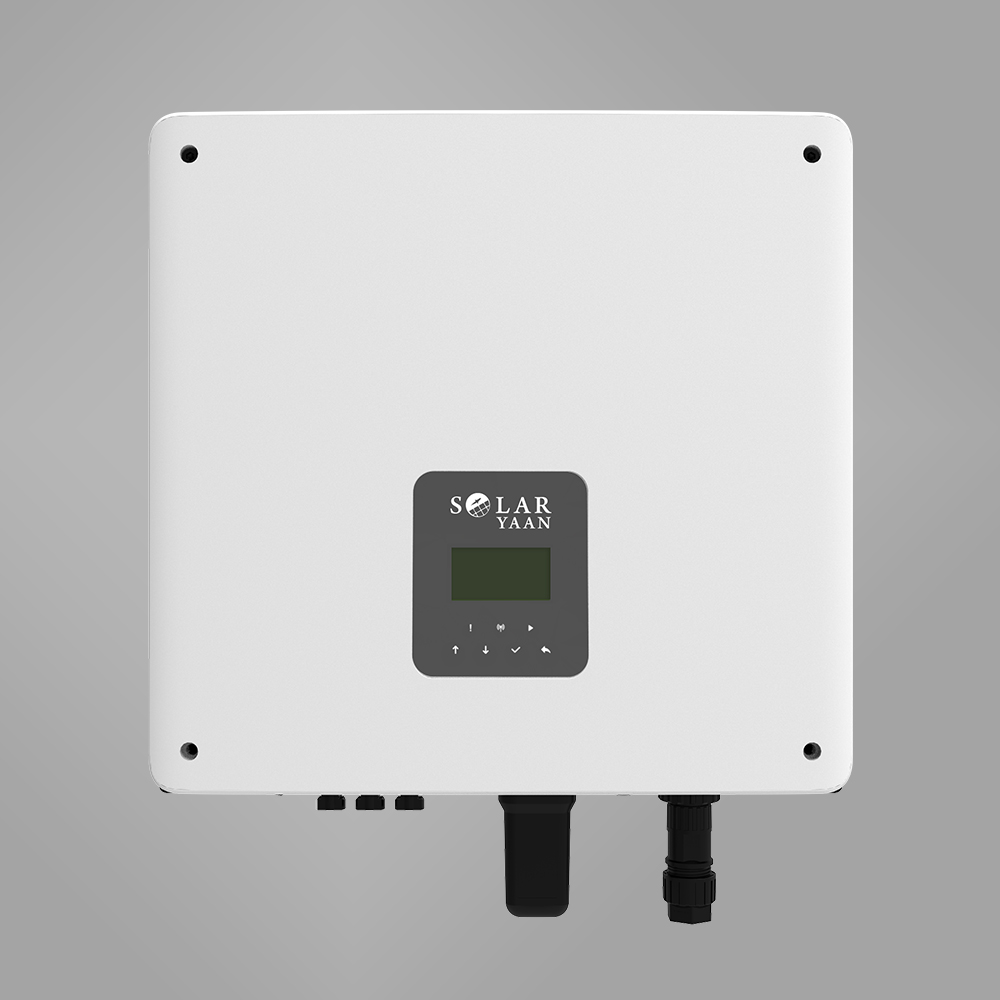

2 Kw Single Phase Inverters

The SYS Series of our company consists of single-phase inverters that infuse the best tech nolgy with an integrated stremlined case design.with 20A DC current, it is robust for residential and commercial spaces. Best Compatible with Bifacial PV and N-Type TOPCON MODULES

Technical Specification

Modal	2 Kw Single Phase Inverters
DC INPUT
Max DC Voltage (V)	500
MPPT Voltage range (V)	40-500
Rated Voltage (V)	360
Start-up Voltage (V)	60
60 Max DC current/MPPT 1	20
No of MPPT	1
No of Strings per MPPT1	1
Short circuit current isc.A	26
Output (AC)
Nominal AC Output Power (W)	2000
Rated AC Current A	8.7
Rated Voltage	220-230V-240V/50 Hz as Per the Indian Grid Standards
Voltage Range	160-290V Variable
Frequency Range (Hz)	50/60:-+5
AC connection configuration	P+N+E
Power Factor	>0.99%, 0.8 leading -0.8 Lagging
THD	<3%
Self-consumption (W)	<0.2
DC current Injection	<0.25%
Efficiency
MPPT efficiency	98.00%
Efficiency
Display Type (LED/LCD)	2*16- character LCD Display with LED Indicators
Communication Port	GPRS8WIFI/RS-485/USB/Ethernet
GFM/OT/RCD/DC rev pol/ anti-islanding/OCP	Integrated
DC Switch /Anti-PID Feature	Optional
Built-in AC/DCSPD type	Type IIISPD (GDT)
Ambient Conditions
Warranty	as per the company standard Policy (Inverters+accessories)
