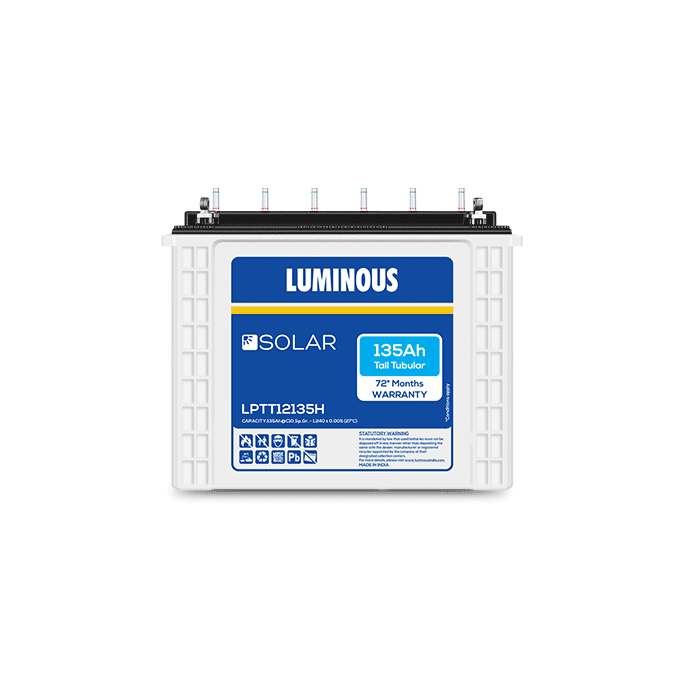

Solar Battery 135AH- LPTT12135H

Next generation tall tubular battery with better charge acceptance and long Back up Long cycles (1500 @80% DOD, 5000 @ 20% DOD), ensuring design life Longer life without discharge with self-discharge rate of 3% per month STC. Efficient battery with Higher AH efficiency > 90%, and WH efficiency > 80% Low maintenance with a topping frequency of 8-10 months, low maintenance with level indicators Manufactured with high corrosion resistant and robust spine technology using the advanced and state-of-the-art HADI high pressure (at 100 bar) spine casting machines, which ensure a super fine grain structure, for strength, long life and highest reliability Designed with thicker positive plates and 20% more electrolyte to withstand power outage


Technical Specification

  • Filled Weight (+/- 5% kg)

    59kg

  • Capacity

    135Ah

  • Application Area

    Commercial Applications, Homes and Small Shops

  • Electrolyte Volume ±5% Ltr

    23ltr

  • Dry weight (±5% Kg)

    30.5Kg

  • Height upto float top (+-3)

    44.0CM

  • Length (+-3)

    50.2CM

  • Breadth

    19.1CM

  • Features

    Spines manufactured using HADI high pressure casting machine for long life Tubular plate construction for extremely long life and superior performance Extra-strong, flexible oxidation-resistant gauntlet for extremely long life Extremely high purity, corrosion-resistant spine alloy composition ensures longer battery service life Highly puncture-resistant polyethylene separator for higher reliability Plates designed for improved charge acceptance

  • Warranty

    "60 Months
