Urja Sathi

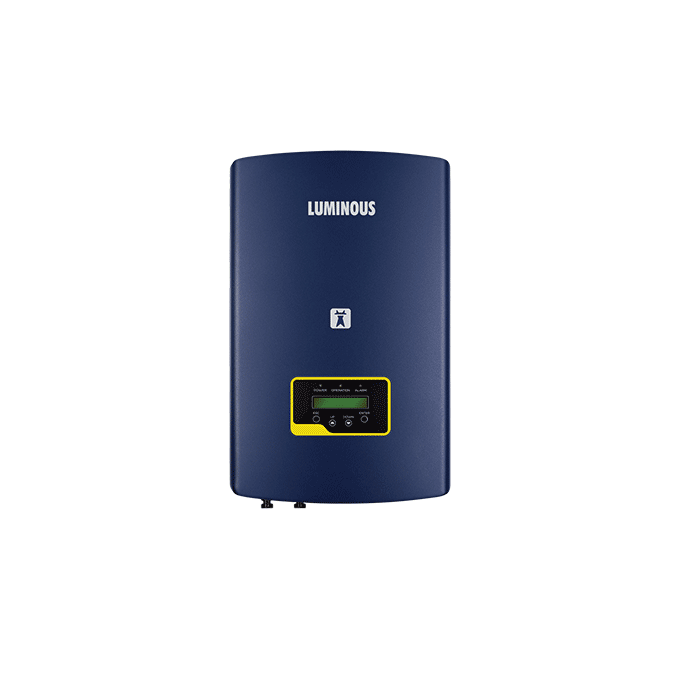

Grid Tie Inverter-Nxi 315

98.6% Max. efficiency Wide voltage range and low start-up voltage Friendly and adaptable connection to the grid Super high frequency switching technology Precise MPPT algorithm Compact and lightweight WiFi/GPRS Real time monitoring Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, anti-islanding, residual current detection and user-friendly Informative LCD Display.

Technical Specification

Dimensions (in cms)

31.0*21.9*60.8CM
VA Rating

15KW
No. of Batteries Supported

NA
Net Weight(In Kg)

19.9
Maximum Panel Capacity (W)

18000Wp
Nominal Battery bank voltage

NA
Application Area

Commercial Applications, Homes and Small Shops
Product Category

On-Grid
Input Voltage Range

160V-1000V
Features

Transformer less GTI with efficiency of more than 97% Inbuilt MPPT charge controllers to extract upto 30% more power from panels Wide operating voltage range to extend usable operation of panels IP65 enclosure: Dust and waterproof, can be installed outside Communication : for remote monitoring
Warranty

60 months
