Urja Sathi

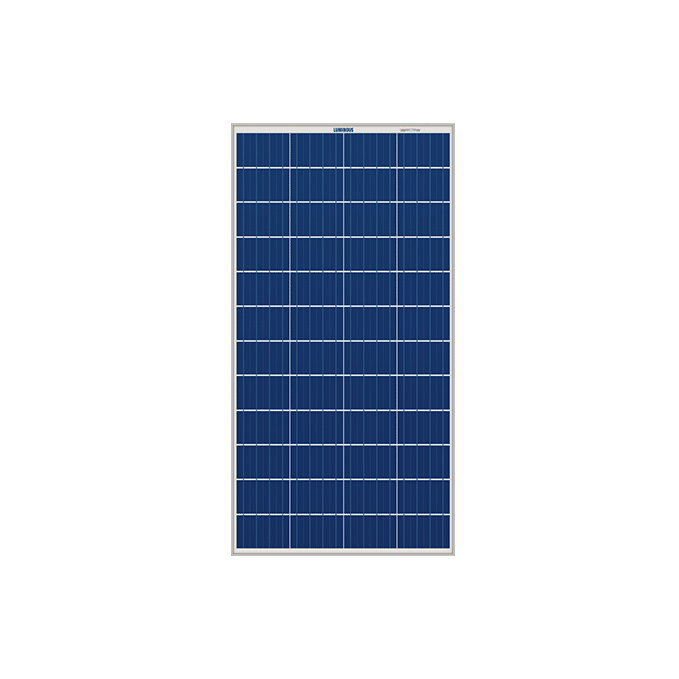

80W/12V Polycrystalline Solar Panel

Luminous offers a range of both Polycrystalline PV modules and Mono PERC halfcut solar panels. Our panels comply with IEC standard and are suitable for a wide range of applications.

Technical Specification

Dimensions (in cms)

78.5*67.0*3.4 CM
Wattage

80Wp
Application Area

Homes and Small Shops
Panel type

PolyCrystalline
No. of cells

36
Open circuit voltage voc

22V
Short circuit Current Isc

4.8A
Maximum Power Voltage Vmp

18V
Maximum Power Current Imp

4.8A
Warranty

60 Months
Capacity - 80 W, 12V
Voltage: Voltage at Max Power (Vmax) - 18V, Open Circuit Voltage (Voc) - 22V
Current: Current at Max Power (imax) - 4.4A, Short Circuit Current (isc) - 4.8A
25 years performance warranty.
Compliance to IEC standards.
Best in Class conversion efficiency.
Anti-reflective coating and back surface (BSF) for more light absorption.
Advanced EVA (ethyl vinyl acetate) encapsulation to give better protection to modules.
High strength light-weight aluminum frame design for high torsion resistance against winds and snow loads.
PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions.
Excellent Low light performance in low visibility in clouds, evening, and morning.
