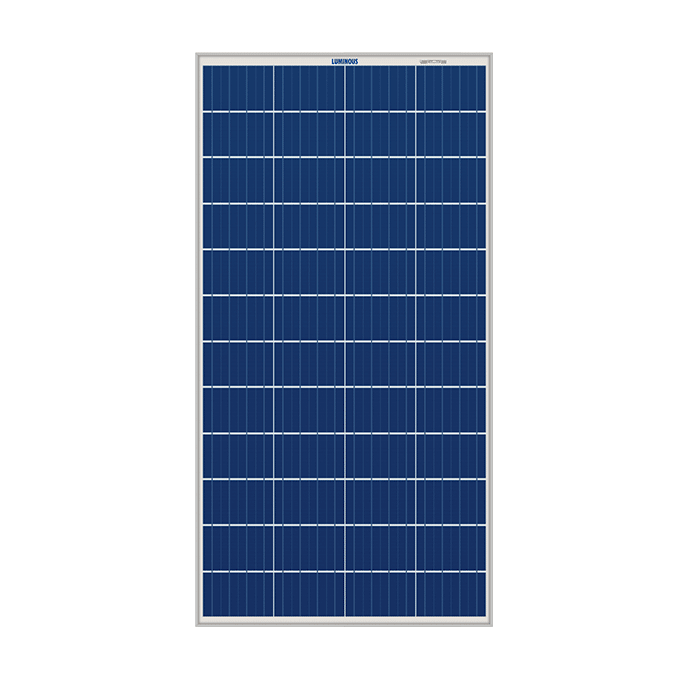

Product Images | Luminous Product Images | Luminous Product Images | Luminous Product Images | Luminous 335W/24V Polycrystalline Solar Panel

Luminous offers a range of both Polycrystalline PV modules and Mono PERC halfcut solar panels. Our panels comply with IEC standard and are suitable for a wide range of applications.

Technical Specification

Dimensions (in cms)

198.6*100.1*3.5 CM
Net Weight(In Kg)

21 Kg
Wattage

335 W
Application Area

Residential Applications, Homes and Small Shops
Panel type

Polycrystalline
Open circuit voltage voc

46.02 V
Short circuit Current Isc

9.43 A
Maximum Power Voltage Vmp

38.08 V
Maximum Power Current Imp

8.80 A
Warranty

144 Months
Capacity - 335 W, 24 V
Voltage: Voltage at Max Power (Vmax) - 38.08 V, Open Circuit Voltage (Voc) - 46.02 V
Current: Current at Max Power (imax) - 8.80 A, Short Circuit Current (isc) - 9.43 A
25 years performance warranty.
Compliance to IEC standards.
Best in Class conversion efficiency.
Anti-reflective coating and back surface (BSF) for more light absorption.
Advanced EVA (ethyl vinyl acetate) encapsulation to give better protection to modules.
High strength light-weight aluminum frame design for high torsion resistance against winds and snow loads.
PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions.
Excellent Low light performance in low visibility in clouds, evening, and morning.
