Urja Sathi

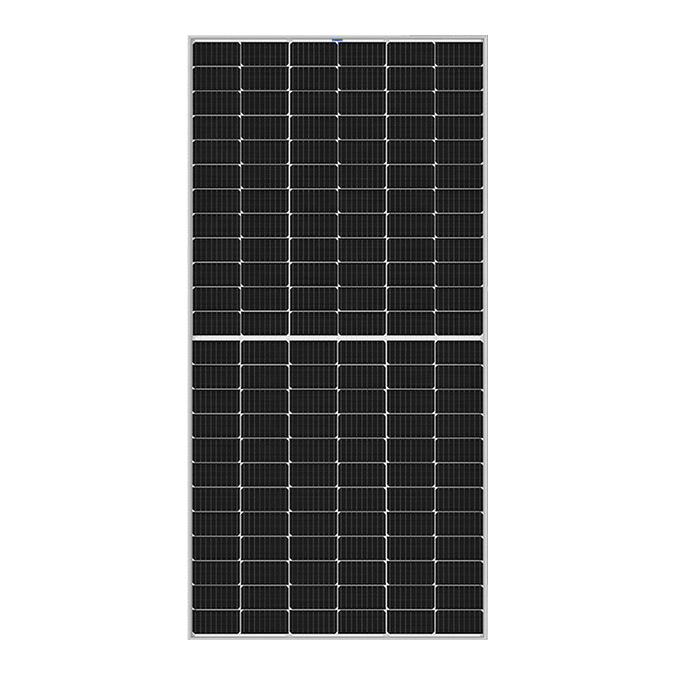

550W/24V Mono Perc Halfcut Solar Panel

Luminous offers a range of both Mono PERC halfcut solar panels and Polycrystalline PV modules. Our panels comply with IEC standard and are suitable for a wide range of applications.

Technical Specification

Dimensions (in cms)

227.9*113.4*3.5 CM
Net Weight(In Kg)

29 Kg
Wattage

550 W
Application Area

Commercial Applications, Homes and Small Shops
Panel type

Mono PERC Half Cut
Open circuit voltage voc

49.80 V
Short circuit Current Isc

13.98 A
Maximum Power Voltage Vmp

41.95 V
Maximum Power Current Imp

13.12 A
Warranty

144 Months
Capacity - 550W, 24V
Voltage: Voltage at Max Power (Vmax) - 41.95V, Open Circuit Voltage (Voc) - 49.80V
Current: Current at Max Power (imax) - 13.2A, Short Circuit Current (isc) - 13.98A
25 years performance warranty.
Half cut solar cell technology.
BIS certified as per IS/IEC standards which is mandatory for all solar panels.
Best in class conversion efficiency.
Better shading tolerance.
Excellent hot spot performance.
Less micro crack impacts.
Lower resistive losses.
Excellent Low light performance in low visibility in clouds, evening, and morning.

550W/24V Mono Perc Halfcut Solar Panel

Technical Specification

Dimensions (in cms)

Net Weight(In Kg)

Wattage

Application Area

Panel type

Open circuit voltage voc

Short circuit Current Isc

Maximum Power Voltage Vmp

Maximum Power Current Imp

Warranty
